Aluminum cable integrity testing guide trusted by electricians

Aluminum cable has long been a practical and cost-effective choice in residential, commercial, and industrial electrical systems.

Known for its lighter weight and lower price compared to copper, aluminum cable is widely used in power distribution, feeder circuits, and large-scale installations.

However, with these advantages come unique challenges including higher susceptibility to oxidation, thermal expansion, and connection instability.

These factors can compromise safety, lead to electrical faults, and in worst-case scenarios, increase the risk of fire. That’s why regular testing of aluminum cable integrity isn’t just recommended it’s essential.

Professional electricians across the industry rely on systematic, data-driven testing methods to ensure aluminum cables remain reliable, safe, and code-compliant over time.

From visual inspections to resistance measurements and thermal scans, each method plays a vital role in identifying early signs of deterioration or hazards before they turn into major issues.

Whether you’re maintaining an older system or installing new infrastructure, understanding how to properly test aluminum cables can save time, reduce costs, and protect lives.

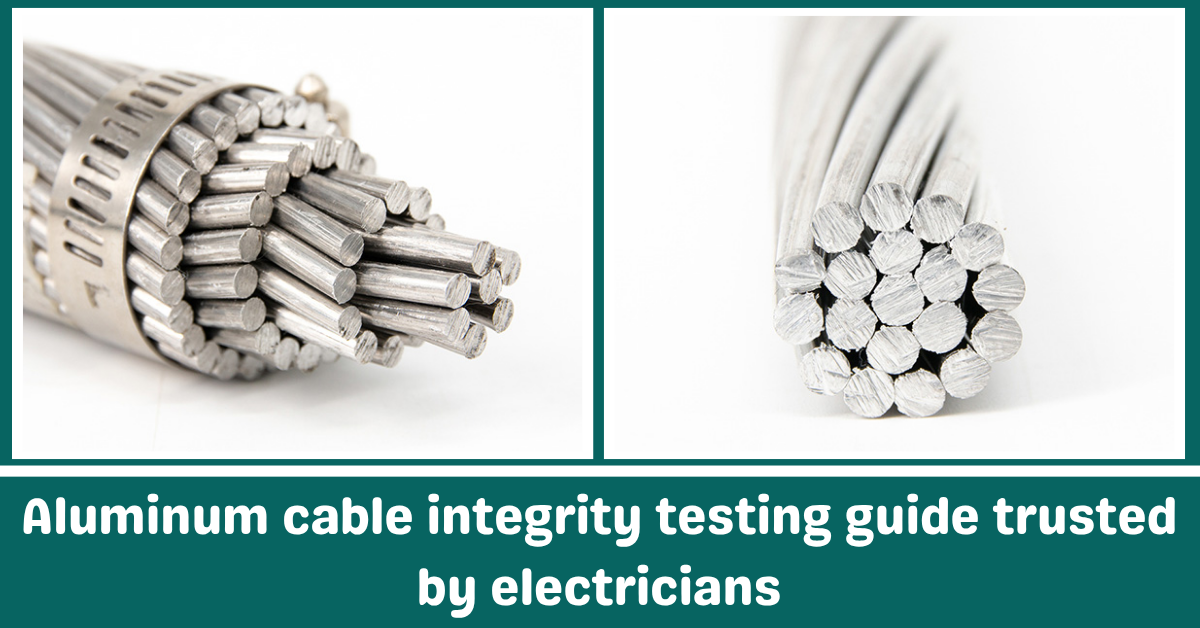

Aluminum cable integrity testing guide trusted by electricians

In this guide, we will explain step-by-step Aluminum Cable integrity testing methods trusted by electricians, the tools they use, and when testing is most critical.

Why Is Aluminum Cable Integrity Testing Important

Aluminum cable is widely used in electrical systems due to its lower cost and lighter weight compared to copper. However, its physical and chemical characteristics make it more vulnerable to issues that can compromise electrical safety and performance.

One of the primary concerns is oxidation. Aluminum forms an oxide layer on its surface when exposed to air. Unlike copper oxide, which is conductive, aluminum oxide is an insulator.

This can reduce the effectiveness of electrical connections, leading to increased resistance and potential overheating.

Another issue is thermal expansion and contraction. Aluminum expands more than copper when it heats up and contracts more when it cools down.

Over time, this movement can loosen terminal screws and connections, creating high-resistance joints. These can cause voltage drops, flickering lights, or, in serious cases, fires. Testing helps detect these early.

Also, aluminum’s softness makes it prone to deformation or damage during installation. When improperly bent or compressed, it can develop weak spots that lead to long-term reliability issues.

Moisture and environmental factors like humidity and salt exposure further contribute to corrosion and degradation.

Regular testing of aluminum cables helps electricians identify potential problems early, maintain performance standards, and comply with safety codes. It’s a proactive way to ensure the continued safety and functionality of the system.

What Does “Integrity Testing” Actually Mean

Integrity testing refers to the process of checking whether an electrical cable system is functioning properly and safely without defects or potential failure points.

For aluminum cables, integrity testing ensures that the conductor, insulation, terminations, and all related connections are in good working condition.

It involves multiple technical checks that focus on continuity, resistance, insulation quality, thermal stability, and physical condition.

The term “integrity” means the cable can reliably carry its rated current without overheating, short-circuiting, or causing a hazard. It also means that the cable insulation is intact and there is no moisture ingress or mechanical damage that could cause faults.

Electricians use various instruments to measure cable integrity, including multimeters, insulation testers (meggers), thermal cameras, and torque tools.

These allow for a complete inspection, including both live and non-live testing conditions.

Integrity testing is essential during new installations, routine maintenance, upgrades, or whenever there’s a suspected issue like overheating, voltage drops, or flickering lights.

It’s a practical and reliable way to ensure an aluminum cable system operates safely over its entire service life.

Who Needs Aluminum Cable Testing and When

Aluminum cable testing is important for a wide range of users, from homeowners to facility managers and industrial technicians. Understanding when and why testing is necessary helps ensure that electrical systems remain efficient and safe.

Homeowners may need testing when buying or renovating a home built between the 1960s and 1970s — a period when aluminum wiring was commonly used.

Older homes with aluminum wiring are more prone to issues like loose connections or oxidized terminals.

Commercial building managers often schedule periodic inspections as part of preventive maintenance. Electrical codes in many regions recommend or require regular testing, especially for systems over 15 years old.

High-energy appliances and equipment increase the demand on circuits, and aluminum cables must be checked to ensure they can handle the load.

Industrial facilities with complex machinery and high power draw must regularly monitor cable integrity to avoid downtime. Equipment malfunction or even small inefficiencies in power delivery can result in high financial costs.

Real estate transactions may also prompt cable testing, particularly when the buyer or insurance provider requests proof of electrical safety.

In some cases, insurance companies may deny coverage or charge higher premiums for properties with untested or outdated aluminum wiring.

Step-by-Step Integrity Testing Methods for Aluminum Cables

Visual Inspection

The first step in cable integrity testing is a detailed visual inspection. Electricians examine the condition of the cable’s insulation, check for physical damage, and look at termination points for signs of overheating, corrosion, or arcing.

Signs such as discoloration, cracking, or powdery residue are indicators of underlying problems. All junction boxes, outlets, and panel connections should be opened and visually verified.

Thermal Imaging

Thermal imaging is a non-contact method that helps detect overheating cables or connection points. Using an infrared camera, electricians scan panels, breakers, and connection terminals while the system is under load.

If a terminal shows a significantly higher temperature than others, it indicates a resistance problem.

This is often due to loose screws, corrosion, or oxidation all common in aluminum wiring.

Continuity Testing

This test confirms that the electrical path is complete throughout the entire length of the aluminum cable. A multimeter is connected at both ends of the cable, and the meter should show very low or zero resistance if the cable is intact.

If the reading is infinite or unusually high, it suggests a break or significant degradation in the wire.

Resistance Measurement

Measuring resistance is more than just checking for continuity. Electricians measure the exact resistance of the aluminum cable and compare it with expected values based on wire gauge and length.

Higher-than-normal resistance can signal deteriorated splices or connectors. Accurate micro-ohm meters or high-quality digital multimeters are used for this purpose.

Insulation Resistance Testing

Also known as megger testing, this checks the health of the cable insulation. The tool applies a high DC voltage (typically 500V to 1000V) between the conductor and ground to see if current leaks through the insulation.

A healthy insulation system will show very high resistance, typically in the range of several mega-ohms. Lower readings suggest moisture intrusion, cracking, or insulation fatigue.

Terminal Torque Testing

Aluminum wiring is sensitive to terminal torque. Over time, aluminum expands and contracts, loosening screw connections.

Electricians check the torque on terminal screws using torque drivers to ensure they are within manufacturer specifications.

If loose, terminals are re-tightened, and anti-oxidant compounds may be applied to improve long-term performance.

Voltage Drop and Load Simulation

By simulating load conditions and measuring voltage at the end of a circuit, electricians can determine whether the aluminum cable is delivering power efficiently.

If the voltage drop exceeds 3% on a branch circuit, it could indicate excessive resistance or a faulty connection. Clamp meters and load banks are used during this test.

Common Tools Electricians Use for Aluminum Cable Testing

Multimeters

Multimeters are essential for measuring voltage, current, and resistance. For aluminum cable integrity checks, digital multimeters help detect continuity, verify resistance values, and ensure there are no live faults before other tests are conducted.

Clamp Meters

These tools measure current flow without disconnecting the circuit. By clamping around the conductor, electricians can check real-time current and evaluate if the cable is handling the load efficiently. They are also used during voltage drop and load simulation tests.

Infrared Thermometers and Thermal Cameras

These are used to scan for hot spots in electrical panels or cable runs. Thermal imaging cameras provide a visual heat map, making it easy to detect areas of concern such as loose connections or corroded terminals.

Infrared thermometers can give spot temperature readings as a quick check.

Megohmmeters (Insulation Testers)

Also known as “meggers”, these devices test insulation resistance. They’re vital for identifying cable deterioration, particularly in environments with moisture or chemical exposure. Regular use helps prevent faults and short circuits.

Torque Screwdrivers

Used to ensure terminal screws are properly tightened to specification. Loose terminals are a common cause of aluminum cable failure, and torque tools help electricians secure connections without damaging the cable.

Micro-Ohmmeters

These measure extremely low resistance values accurately. Useful for detecting minor but critical increases in resistance that signal connection problems or cable degradation in aluminum wiring.

Field Practices Electricians Follow with Aluminum Cable

Electricians follow certain best practices to enhance the reliability of aluminum cables during testing and installation. One of the most common practices is the use of anti-oxidant compounds like Noalox or Penetrox at terminal points. This prevents oxidation and ensures good contact.

They also ensure CO/ALR-rated devices (receptacles and switches) are used with aluminum wiring. These are specifically designed to handle the expansion and conductivity differences of aluminum.

Another key practice is avoiding mixing copper and aluminum wires without using approved connectors like AL/CU rated lugs or wire nuts. Direct connections between dissimilar metals can lead to galvanic corrosion, which weakens the joint over time.

Electricians label all aluminum cable runs for identification and keep records of testing for inspections or insurance purposes. In multi-unit or commercial properties, cable testing is often scheduled annually.

Signs an Aluminum Cable Has Integrity Issues

Certain warning signs indicate that aluminum wiring may need immediate testing:

1. Frequent breaker tripping on the same circuit

2. Dimming or flickering lights when appliances are used

3. Warm wall plates or electrical smells around outlets or switches

4. Buzzing sounds at switches or outlets

5. Visible discoloration or melted insulation

6. Increased energy consumption with no added load

These symptoms suggest high resistance, loose connections, or failing insulation — all of which are common in aging aluminum wiring.

Code Compliance and Safety Standards

Integrity testing for aluminum cables is often required by National Electrical Code (NEC) and various local regulations. For example, NEC Article 110.14(C) requires that connections be properly torqued, especially for aluminum conductors.

UL-listed connectors and devices must be used for aluminum wiring, ensuring compatibility and safety. NFPA 70E provides safety standards for electricians during testing, including lockout/tagout procedures and personal protective equipment (PPE) requirements.

Many insurers and building codes now mandate testing and certification before aluminum wiring can be approved in older or renovated structures. Records of resistance tests, insulation values, and thermal inspections are often part of compliance documentation.

Regular testing also ensures that aluminum cable systems remain eligible for insurance coverage, inspections, and resale certification.

Conclusion

Aluminum cable remains a practical choice in many electrical systems due to its cost-effectiveness and lightweight nature.

However, its unique characteristics including susceptibility to oxidation, thermal expansion, and connection loosening — demand regular and thorough integrity testing.

Electricians understand that maintaining safety and performance goes beyond visual checks; it involves systematic testing using accurate tools like multimeters, meggers, thermal cameras, and torque drivers.

These methods help identify high-resistance points, insulation breakdowns, and improper terminations before they lead to costly or dangerous failures.

Whether in residential, commercial, or industrial settings, routine aluminum cable testing ensures code compliance, enhances reliability, and extends the life of the entire electrical infrastructure.

By following proven procedures and using proper tools, electricians can detect hidden issues, maintain safe operation, and prevent unplanned outages. In the long run, this proactive approach safeguards property, equipment, and lives.

Aluminum cable integrity testing is not just about troubleshooting it’s about building trust in the electrical system and ensuring peace of mind for everyone who relies on it.
