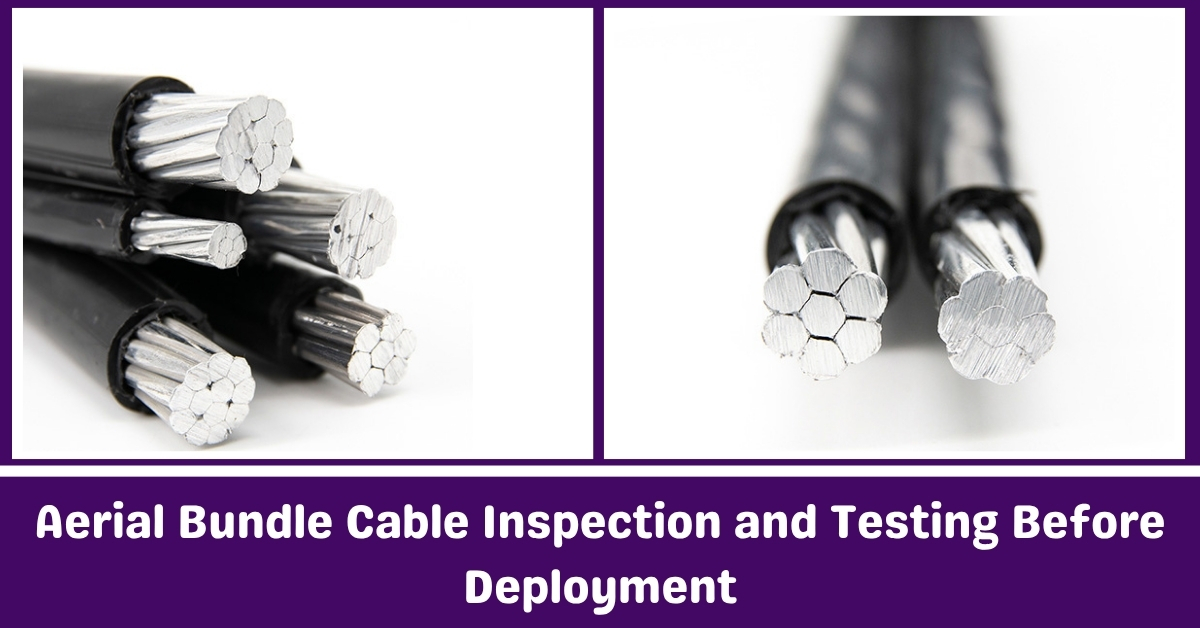

Aerial bundle cable (ABC) is a type of overhead power distribution system that uses multiple insulated conductors bundled together, offering a safer and more efficient alternative to traditional bare conductors.
These cables are widely adopted in both urban and rural areas due to their ability to minimize power theft, reduce short circuits from tree contact, and simplify installation.
However, before ABC cables are deployed in the field, they must undergo thorough inspection and testing to ensure long-term performance and safety.
Any oversight in this critical phase can lead to electrical failures, costly repairs, or even public safety risks.
Testing verifies the cable’s mechanical strength, insulation resistance, conductor continuity, and resistance to environmental factors.
Inspection ensures that there are no physical damages, dimensional inconsistencies, or manufacturing defects. Together, these steps form a solid foundation for reliable grid infrastructure.
In this guide, we will explain the full process of Aerial Bundle Cable inspection and testing before deployment, including standards, procedures, and tools to ensure that every cable meets the required performance and safety criteria.
Before aerial bundle cables are deployed, thorough inspection and testing are not just procedural steps—they are essential risk-mitigation practices.
Skipping these steps or carrying them out inadequately can result in serious consequences for the power distribution system.
Electrical Failures and Power Loss
One of the main risks is internal damage or defects that affect the electrical performance of the cable. For example, poor insulation, exposed conductors, or manufacturing faults can cause partial discharges, short circuits, or voltage drops.
These issues compromise the reliability of power supply and increase transmission losses.
Mechanical Failures Under Load
ABC cables, especially those with integrated messenger wires, must support both electrical and mechanical loads.
If the cable’s tensile strength is not verified, it may snap under environmental stress such as wind, ice, or physical tension.
This can bring down entire distribution lines and result in costly outages and repair work.
Safety Hazards for Technicians and the Public
Insulation defects or exposed conductors increase the risk of electric shock to installation teams and nearby residents.
Improperly tested cables can also become fire hazards, particularly in densely populated areas.
Regulatory Non-Compliance
Electrical utilities and contractors are often required to meet national and international safety standards.
If inspection and testing are not properly documented, project approval may be delayed or revoked, leading to legal penalties or project downtime.
Long-Term Maintenance Costs
Cables with undetected faults often fail prematurely. Without pre-deployment testing, these failures can occur within months rather than years, increasing maintenance frequency, labor costs, and material replacement needs.
The pre-deployment inspection of aerial bundle cables involves several systematic steps to ensure the cables meet both functional and safety standards.
Each step is aimed at verifying the integrity of the cable before it is installed on-site.
Visual Inspection
This is the first and most immediate step. Technicians visually examine the entire length of the cable to identify obvious physical defects.
These include nicks, abrasions, cuts, flattening, kinks, or exposed conductors. Any signs of improper bundling, crushing during transport, or insulation damage must be flagged and documented.
Dimensional Verification
Cables must conform to manufacturer specifications and relevant standards (such as IEC 60502 or IS 7098). Using calipers or micrometers, the conductor diameter, insulation thickness, and overall cable dimensions are measured.
These checks ensure proper compatibility with accessories such as connectors, insulators, and terminals.
Insulation Resistance Testing
This test ensures that the insulation is capable of resisting electric current leakage. A megohmmeter is used to apply a test voltage (commonly 1,000V DC) across the conductor and outer sheath.
A typical passing value is 1 GΩ per kilometer at 20°C, but the acceptable range should be confirmed according to the cable’s voltage class.
High Voltage Withstand Test
This dielectric test is critical for assessing insulation strength under real-world voltage stress. An AC voltage that is 2.5 times the rated operating voltage is applied for 5 minutes.
There should be no breakdown or flashover. This ensures that the insulation can withstand sudden surges or overvoltages without failure.
Conductor Continuity and Resistance
The continuity test verifies that there are no internal breaks in the conductor. A low-resistance ohmmeter is used to measure the resistance along the cable’s length.
Readings must match the resistance values listed in the cable’s datasheet, typically around 1.9 ohms per kilometer for 16 mm² aluminum conductors.
Tensile Strength Test (for Messenger Wire)
ABC cables include a messenger wire that carries mechanical loads. A universal testing machine applies increasing tensile force to a cable sample to ensure it can handle installation stress and environmental load.
The messenger should meet or exceed 90% of its rated breaking strength.
Optional Environmental Tests
For installations in extreme climates, UV resistance and thermal aging tests are advised. These evaluate how insulation materials perform under prolonged exposure to sunlight or heat.
Samples are exposed to UV light and then tested for changes in tensile strength or elongation.
Even after passing all inspection and testing stages, aerial bundle cables must be stored and handled correctly to avoid damage before installation.
Mishandling can undo all previous quality assurance steps.
Proper Packaging Standards
Cables should be shipped on steel or treated wooden drums that comply with ISO or national transport standards.
Drums should be clearly labeled with the cable type, batch number, manufacturing date, and directional arrows for uncoiling. The drum sides should be sealed to protect the cable from dust and moisture.
Handling Guidelines
Cables must be moved using forklifts or cranes with suitable lifting mechanisms to avoid dropping or dragging.
Cables should never be rolled on their sides or lifted from the conductor core, as this can damage insulation or deform the cable structure. Uncoiling must be done using a drum jack to prevent twists and kinks.
Storage Conditions
Store cables in dry, covered areas that are protected from direct sunlight, rain, or standing water. If outdoor storage is unavoidable, cover the drums with UV-resistant tarpaulins. Maintain adequate spacing between drums to allow ventilation and prevent physical contact.
Storage Duration
Cables should ideally be installed within 12 months of manufacturing. If longer storage is necessary, periodic inspections must be conducted to check for signs of insulation aging, discoloration, or moisture ingress.
Before the cables are approved for site deployment, a final round of testing is conducted in the presence of the client or project quality assurance (QA) team.
In many cases, independent third-party testing agencies are engaged to certify that the cables meet all technical requirements.
Documentation Review
All test results from the manufacturer, including factory acceptance tests (FAT), are reviewed. These reports should include details of insulation resistance, conductor resistance, high voltage test results, and mechanical strength measurements.
Test reports should be linked to specific batch numbers and labeled drums.
Re-Testing (Random Sampling)
To verify consistency across the supplied batch, random samples are taken from the delivered drums and retested for electrical and mechanical properties. This may include insulation resistance, continuity, and visual inspection.
Third-Party Lab Certification
For regulatory compliance or contractual requirements, third-party certification is often mandatory. Agencies like TUV, SGS, Intertek, or Bureau Veritas offer on-site or lab-based testing services.
Their reports carry significant weight in both government and private sector projects, confirming compliance with international standards like IEC, ISO, and ASTM.
Project Approval and Recordkeeping
Once all tests are passed and certificates are issued, the cables are approved for deployment.
All records including test results, certificates, inspection reports, and drum IDs—should be stored securely, both in physical format and digital databases. These documents support future audits and maintenance cycles.
The final stage before installing aerial bundle cables in the field involves formal approval and tagging to indicate that the product is cleared for deployment.
This step ensures that only tested and certified materials are used in the actual grid infrastructure.
Approval Tagging
Each cable drum is tagged with a deployment-ready label. This includes critical information such as batch number, test status, inspection date, certifying authority, and responsible QA officer.
The tag should be weatherproof and securely attached to the drum.
Traceability Measures
For large-scale projects, QR codes or RFID tags can be added to each drum. These digital markers link to a cloud-based database containing full test histories, manufacturing records, and shipping logs.
This makes it easy to trace and validate cable quality on-site or during later maintenance operations.
Final Logistics Coordination
Approved drums are dispatched to installation sites with complete documentation, including installation instructions and handling guidelines.
The logistics team must ensure that cable handling follows safety practices outlined in the project manual. Each team member should be briefed on lifting techniques, proper tools, and layout plans.
On-Site Validation
Once the cables reach the site, a quick verification is done by the site supervisor to confirm that drum tags match the expected delivery list.
Any discrepancies must be reported immediately. Cables should not be installed until all verifications are completed.
Proper inspection and testing of aerial bundle cables before deployment are critical steps that determine the long-term safety, reliability, and performance of power distribution systems.
Skipping or minimizing these procedures may save time initially, but often leads to costly failures, safety hazards, and non-compliance with industry regulations.
Each phase from visual inspection and dimensional verification to electrical testing and tensile strength assessment ensures that the cable meets operational demands and withstands environmental stress.
Secure packaging, careful handling, and storage are just as important in preserving cable integrity before installation.
Final acceptance testing and third-party certification add another layer of assurance, confirming that the cable meets technical standards and project requirements.
Only after successful validation and traceability tagging should the cable be cleared for deployment.
This methodical approach not only prevents outages and damage but also builds a dependable infrastructure capable of delivering uninterrupted electricity.
In summary, investing time and resources into pre-deployment checks is not just a quality control measure it is a proactive strategy to secure the future of the power grid.
