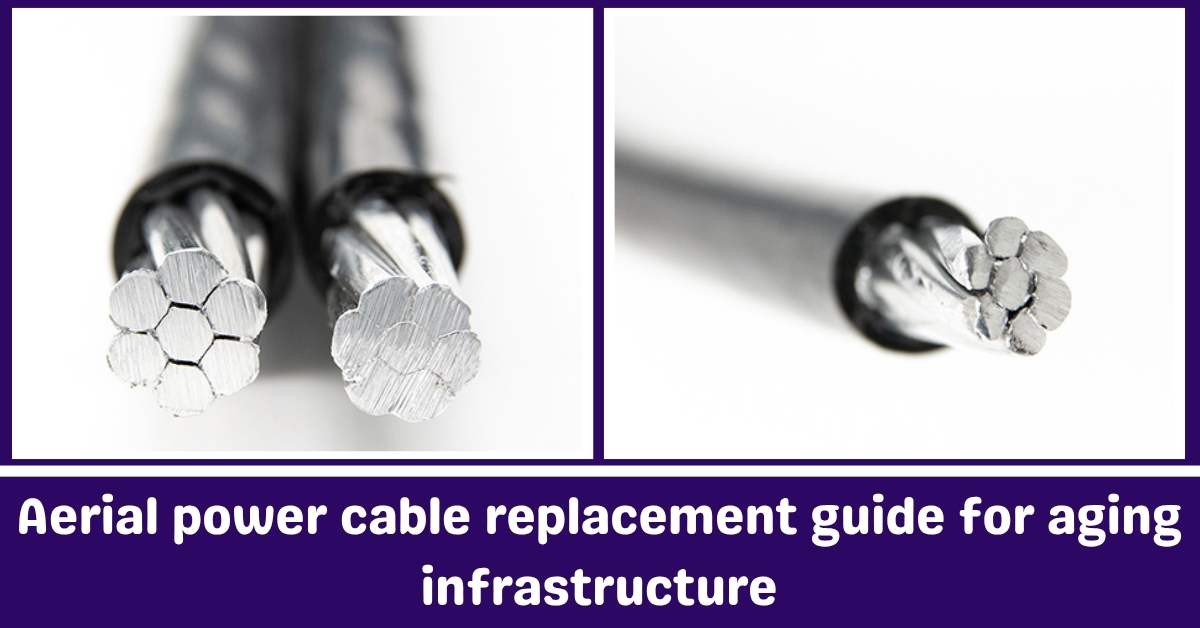

Aerial power cable systems form the foundation of overhead electrical transmission and distribution across cities, suburbs, and remote regions. These cables, often strung between poles or towers, are responsible for delivering electricity safely and efficiently.
However, much of this infrastructure is aging many lines in service today were installed over 40 years ago and are now deteriorating due to weather exposure, corrosion, thermal cycling, and mechanical wear.
As these systems age, their reliability decreases and the risk of power outages, safety hazards, and equipment failures increases.
Utility companies, municipalities, and private energy providers are facing a critical decision point: replace these cables proactively or deal with rising maintenance costs and emergency repairs.
Replacing aging aerial power cables is not just a matter of swapping old wires for new ones.
It involves a detailed inspection process, future-proof engineering decisions, regulatory approvals, and precise installation work all while keeping safety and operational continuity in focus.
In this guide, we will explain the complete step-by-step process for replacing aging aerial power cables, from assessment to final commissioning.
Aerial power cable infrastructure around the world is aging. Many of these cables were installed several decades ago and are now operating beyond their intended service life.
These aging lines are increasingly prone to failures such as insulation breakdown, conductor corrosion, and mechanical fatigue caused by decades of exposure to sun, wind, rain, and temperature fluctuations.
In many regions, especially in North America and Europe, it is estimated that over 60% of aerial power cables have been in service for more than 30 years.
As these systems age, the risk of electrical faults, outages, and safety hazards continues to grow.
Electrical outages caused by failing overhead cables are more frequent than those in underground networks. When failures do occur, the repairs are often costly and time-sensitive, requiring emergency response crews and temporary shutdowns.
In addition, aerial cable faults in dry or windy regions have been linked to wildfires and public safety risks.
Regulatory bodies are now tightening maintenance and upgrade expectations, putting more pressure on utility operators to replace outdated systems proactively.
Replacing old aerial power cables also opens the opportunity for capacity upgrades. Modern conductors can handle higher current loads, are more heat-resistant, and allow for integration with smart grid technologies.
For areas experiencing rising electricity demand from electric vehicles, solar power, or commercial development, upgrading cables is essential for system reliability.
Given the safety risks, rising maintenance costs, and evolving energy demand, replacing aging aerial cables has become a top infrastructure priority for utilities, governments, and private operators in 2025.
Replacing aerial power cables involves a structured process that ensures safety, reliability, and compliance. Below is a breakdown of each key step in the replacement journey, explained in clear and practical terms.
1. System Condition Assessment
The first step is conducting a thorough assessment of the existing aerial cable system. This includes visual inspections from the ground and, increasingly, drone-based imaging to inspect high or hard-to-reach segments.
Technicians look for signs of wear such as sagging lines, rusted connectors, cracked insulators, and corrosion at joints. Thermal cameras may also be used to detect hotspots that indicate overheating conductors.
In some cases, a sample section of the cable is removed for lab analysis to assess its mechanical and electrical condition. This assessment helps prioritize which cable segments need replacement urgently and which can remain in service longer.
2. Load and Capacity Planning
Before selecting replacement cables, engineers assess current and future power loads. This helps determine if a direct replacement is sufficient or if upgraded capacity is required.
For example, in areas with growing demand due to electric vehicle chargers, data centers, or residential expansion, utilities may upgrade from smaller aluminum conductors to high-temperature low-sag (HTLS) conductors.
These newer types carry more current without excessive sagging, making them ideal for system upgrades without changing tower spacing.
Proper load forecasting ensures the new cables can support not just today’s demand, but the system’s expected growth over the next 20 to 30 years.
3. Regulatory Compliance and Permitting
Cable replacement projects must comply with local, regional, and national regulations. This may involve securing permits for work on public or private land, conducting environmental assessments, and coordinating with transportation and aviation authorities if the lines cross roads, railways, or flight paths.
If new pole locations are needed or if taller structures are being installed, zoning approval may also be required.
Utilities must prepare documentation, submit technical drawings, and in some cases, hold public meetings to communicate the project plan.
4. Material Selection and Procurement
Once the technical specifications are finalized, the next step is selecting and ordering materials. The main conductor type must be chosen—commonly used options include ACSR (Aluminum Conductor Steel Reinforced), AAAC (All Aluminum Alloy Conductor), or newer HTLS types.
Other materials include insulators, crossarms, mounting hardware, guy wires, and vibration dampers.
All materials must meet recognized industry standards and be compatible with the operating voltage and mechanical conditions of the site.
Procurement also includes logistics planning to ensure all equipment arrives on time to avoid project delays.
5. Site Preparation and Safety Planning
Before field work begins, utility crews prepare the job site. This involves setting up barriers, warning signs, and temporary access paths. Safety is a top concern.
The line section to be replaced is de-energized, locked out, and grounded. All workers are equipped with the appropriate protective gear including arc flash suits, rubber gloves, fall protection harnesses, and insulated tools.
Pre-job briefings ensure all team members understand their tasks, risks, and communication protocols. In some cases, temporary feeders are set up to maintain power to critical users during the replacement process.
6. Cable Removal
With the line de-energized and equipment ready, crews begin removing the old aerial cables. This is usually done by disconnecting the conductor at each pole and carefully lowering it to the ground using tensioning equipment.
Damaged insulators, hardware, or crossarms are also removed and disposed of according to environmental regulations. Care is taken not to damage surrounding infrastructure such as poles, guy wires, or nearby utility lines.
7. Installation of New Cables
New conductors are installed using tension stringing techniques. Crews pull the cables into position while maintaining proper tension to avoid excessive sag or stress.
Insulators and hardware are replaced or upgraded to support the new conductor type. Every connection is carefully crimped, bolted, or spliced using approved fittings to ensure secure and conductive joints.
Where needed, dampers and spacers are added to reduce wind vibration and prevent conductor damage over time.
8. Final Testing and Commissioning
After installation, the line is tested for electrical integrity. This may include insulation resistance testing, continuity checks, and thermal imaging to confirm even current distribution.
Visual inspections ensure no hardware is loose and that cable sag is within allowed tolerances. Once tests are passed, the line is energized and monitored for a period to ensure stable performance.
Crews document the work, update the asset management system, and set maintenance schedules for future inspections.
While the replacement process is well-defined, certain conditions can make the job significantly more complex. Utilities should be aware of these challenges early in the planning stage.
1. Urban Density and Traffic Constraints
In city environments, working around roads, buildings, and pedestrians can limit equipment access. Bucket trucks, cranes, and cable pullers may have limited room to operate.
To manage this, work may need to be scheduled at night or during low-traffic hours.
Additional coordination with city agencies and police may be required for traffic redirection or temporary road closures.
2. Difficult Terrain and Remote Locations
In rural or mountainous regions, replacement crews may face steep slopes, dense vegetation, or limited vehicle access. Poles located in wetlands or along cliffs pose added difficulty for both removal and installation.
These areas often require temporary access roads, off-road vehicles, or even helicopter transport for materials and personnel. The time and cost for such jobs are usually much higher than in urban or suburban settings.
3. Multi-Circuit Lines
When replacing aerial cables on towers that carry multiple circuits, extra precautions are needed. If one circuit remains live while another is being replaced, the risk of arc flash or accidental contact is increased.
Special training, insulation barriers, and coordination between crews become essential. Often, temporary outages must be staggered, which can slow progress.
4. Shared Utility Poles
Many utility poles are shared with telecommunications or cable providers. Before replacement begins, coordination is required with all other parties to either temporarily move or protect their lines.
Delays often arise if telecom lines must be relocated before electrical work can proceed. This is particularly common in older neighborhoods where space on poles is limited.
5. Weather Conditions
Weather plays a major role in aerial work. High winds, rain, and lightning storms can halt replacement activities due to safety risks.
Even once work resumes, recent storms may have weakened poles or soaked access roads, requiring additional stabilization work. In hot climates, conductor sag increases, which must be compensated during installation.
6. Environmental and Wildlife Concerns
In environmentally sensitive areas, replacement projects may face restrictions to protect wildlife or vegetation. For example, work may be banned during bird nesting seasons or require special procedures to avoid disturbing habitats.
In forested zones, tree trimming and vegetation clearing must follow environmental regulations, adding to project timelines and permitting needs.
7. Pole and Structure Condition
Sometimes, the condition of the poles or towers is worse than expected. If structural defects such as rot, rust, or cracks are found during cable removal, they must be repaired or replaced before new conductors can be strung.
This can involve pouring new foundations, erecting replacement poles, or reinforcing crossarms, all of which add to the schedule and budget.
Aging aerial power cables present a significant challenge for utilities, municipalities, and infrastructure planners worldwide.
As these systems continue to exceed their intended lifespan, the risks of power outages, safety incidents, and emergency repair costs increase substantially.
Replacing these outdated lines is no longer optional it is a practical necessity for maintaining a stable and reliable power grid.
Through a structured approach that includes system assessment, load planning, permitting, material selection, and precise installation, utilities can execute cable replacements effectively and minimize service disruptions.
Challenges such as urban congestion, rough terrain, live adjacent circuits, and environmental regulations can complicate replacement projects, but with proper preparation, these obstacles are manageable.
Upgrading to modern conductor types not only improves reliability but also enables higher current capacity, supporting future energy needs such as EVs, renewable integration, and digital monitoring systems.
Ultimately, investing in aerial power cable replacement ensures infrastructure resilience, operational efficiency, and public safety.
It’s a forward-thinking step that protects current assets and prepares the grid for the demands of tomorrow. By following the guidance outlined in this article, utilities can approach replacements with clarity, control, and confidence.
