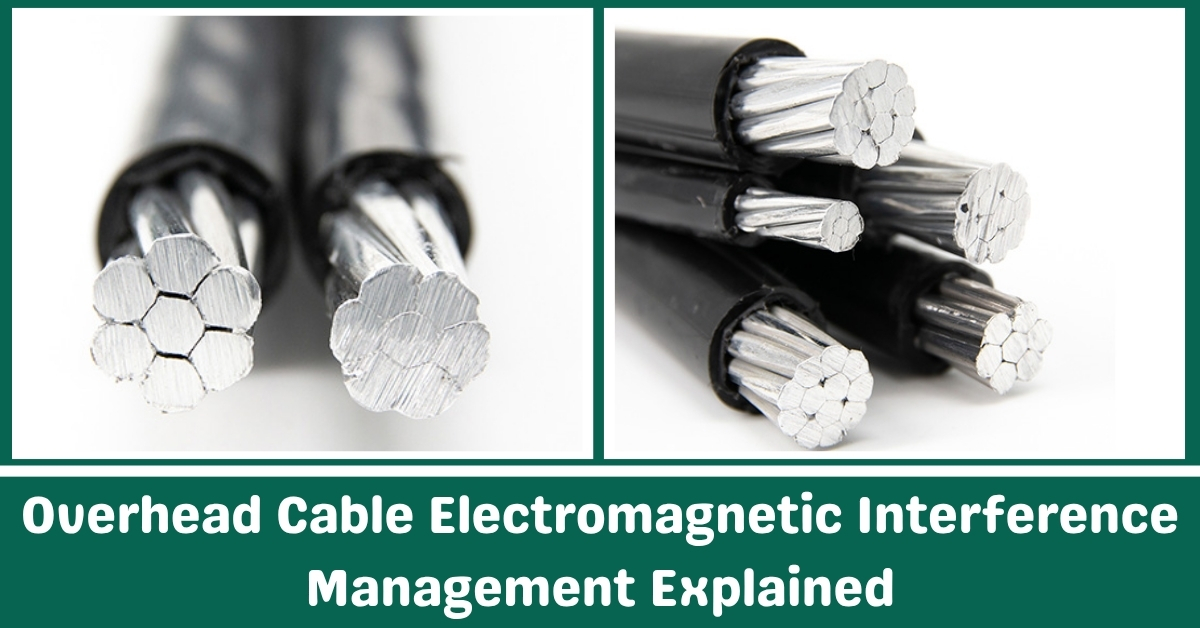

Overhead Cable Electromagnetic interference (EMI) is an often-overlooked challenge in electrical infrastructure.
These cables used for power transmission, telecommunications, rail signaling, and other critical applications are constantly exposed to electromagnetic fields generated by nearby power lines, industrial equipment, radio towers, and even atmospheric conditions like lightning.
While the signals carried by these cables are vital, they’re also vulnerable to distortion or complete disruption when EMI isn’t properly managed.
Unlike underground systems that enjoy a natural shield from surrounding interference, overhead cables operate in open air, making them significantly more susceptible.
The consequences? System failures, communication errors, equipment damage, and unplanned downtime.
That’s why understanding and mitigating EMI is not just a technical option it’s a functional requirement for safety, reliability, and efficiency.
Fortunately, EMI isn’t unstoppable. Through proven engineering practices such as proper cable selection, shielding, grounding, and strategic routing, it can be controlled effectively.
These are not just theoretical ideas they’re practical steps grounded in real-world application.
In this guide, we will explain how to identify, prevent, and manage electromagnetic interference in overhead cable systems step by step.
Electromagnetic interference (EMI) refers to any unwanted signal or electromagnetic energy that disrupts the normal operation of electrical or electronic systems.
It occurs when an external electromagnetic field interferes with the signals traveling through a conductor or circuit. This interference can distort or entirely block the signals being transmitted, leading to performance degradation, errors, or equipment malfunction.
EMI can be broadly categorized into two types: conducted EMI and radiated EMI. Conducted EMI travels along cables and wires, entering devices through power or signal lines.
Radiated EMI, on the other hand, is transmitted through the air and can affect systems without direct contact.
Overhead cables are particularly exposed to radiated EMI, but conducted EMI is also a concern in interconnected systems.
The sources of EMI vary widely. Natural sources include lightning strikes, solar flares, and atmospheric disturbances.
Man-made sources encompass electrical switching devices, large motors, industrial machinery, high-frequency wireless systems, and even other nearby cables carrying alternating currents.
All these sources can emit electromagnetic radiation that interferes with signal transmission in nearby cables.
The consequences of EMI range from mild noise or distortion to complete system failure, depending on the application.
For example, EMI in communication lines can result in data loss or incorrect signals, while in power transmission systems, it can trigger protection mechanisms or even damage equipment.
This is why managing EMI is a critical aspect of designing and maintaining any system that uses these cables.
Electromagnetic Compatibility (EMC) is the broader framework within which EMI is managed. EMC aims to ensure that different devices and systems can operate in the same environment without interfering with one another.
EMI management is one of the key strategies used to achieve EMC, especially in systems exposed to open air, such as overhead cable infrastructure.
Overhead cables are widely used due to their cost-effectiveness, accessibility for maintenance, and ease of deployment. However, their exposed nature also makes them more vulnerable to electromagnetic interference compared to underground or shielded installations.
One of the primary reasons for increased vulnerability is proximity to EMI sources. These cables are often routed near other infrastructure such as high-voltage power lines, substations, wireless transmission towers, and rail systems.
These installations produce strong electromagnetic fields, especially during peak operation or switching events. Since overhead cables are suspended in open air, they lack the shielding that buried cables naturally benefit from.
Another factor is the length of exposure. It often stretch across long distances in power distribution and telecommunication networks.
This extended reach means a greater cumulative exposure to various interference sources along the route. The longer the cable, the more surface area it presents to pick up unwanted signals from the environment.
The design and installation methods of overhead cables can also increase susceptibility. Many cables are installed without metallic shielding to reduce weight and cost.
While this reduces initial expense, it also makes the cables more sensitive to radiated EMI. Even when shielded, poor grounding or improper termination of shielding layers can reduce effectiveness, allowing interference to penetrate.
Environmental factors play a significant role as well. Weather events such as thunderstorms can introduce strong bursts of electromagnetic energy. Lightning, in particular, generates high-frequency EMI that can travel for miles.
Overhead cables are especially at risk since they are often the tallest structures in open areas and act as conductive paths for lightning strikes or induced voltage spikes.
Physical configuration adds to the risk. Overhead cables are often bundled or routed near each other, leading to crosstalk, a form of EMI where signals from one cable induce voltages in adjacent cables.
Without proper spacing or insulation, these interactions can lead to data corruption, noise, or power anomalies.
Lastly, regulatory challenges may contribute. In many regions, the planning and deployment of overhead infrastructure are governed by multiple bodies with varying standards.
Inconsistent EMI requirements or lack of compliance checks can result in installations that are vulnerable to interference by design.
In summary, the vulnerability of overhead cables stems from a combination of exposure to environmental factors, physical layout, material selection, and lack of inherent shielding.
Effective EMI management becomes critical to ensure system performance, signal integrity, and equipment longevity.
Electromagnetic interference can be managed through a structured approach that involves multiple layers of protection and design considerations.
Addressing EMI effectively means controlling both the source and the susceptibility of the system.
In the case of overhead cables, this involves optimizing materials, installation methods, and circuit configurations.
Cable Selection
Choosing the right cable is the first and most important step. Different cable types offer varying levels of EMI resistance depending on their construction and intended application.
Twisted pair cables are a common choice for communication systems. The twist reduces loop area between the conductors, minimizing the pickup of external fields and reducing emissions from the cable itself.
For power cables, selecting conductors with a smaller loop area and suitable insulation helps reduce their susceptibility to interference.
Shielded cables provide an additional barrier against EMI. A cable shield usually a metallic foil or braided wire surrounds the conductors and serves as a Faraday cage to block external electromagnetic fields.
The effectiveness of shielding depends on the shield material, coverage percentage, and the quality of grounding. Copper braid shields are effective for low-frequency interference, while foil shields are better for high-frequency signals.
Using high-quality insulation materials like polyethylene or cross-linked polyethylene (XLPE) can also improve EMI performance by maintaining consistent dielectric properties and reducing leakage currents.
Shielding Techniques
Shielding overhead cables involves wrapping them in conductive materials that reflect or absorb incoming electromagnetic waves. There are several common methods:
1. Foil shielding uses a thin layer of metal, usually aluminum, which offers near-complete coverage and is ideal for high-frequency EMI.
2. Braid shielding consists of woven copper strands. It offers less coverage but higher conductivity, suitable for low-frequency interference.
3. Combination shielding uses both foil and braid, providing balanced protection across a wide frequency range.
For overhead installations, shielding must also account for mechanical durability and environmental exposure. Materials must be resistant to UV radiation, moisture, and corrosion.
In addition to shielding individual cables, installing shielded conduit systems or metallic cable trays can provide system-level shielding.
These enclosures can help isolate groups of cables from external sources and minimize mutual interference.
Grounding and Bonding
Shielding alone is ineffective without proper grounding. Grounding provides a path for unwanted electromagnetic energy to be safely dissipated into the earth.
Poor grounding can create voltage differentials that lead to current loops, which in turn generate EMI rather than suppress it.
In overhead cable systems, grounding should be implemented at both ends of shielded cables where possible.
This ensures that the entire length of the shield remains at a consistent potential and that any induced energy is quickly diverted away from the core conductors.
Bonding the process of connecting conductive parts together should be used to maintain electrical continuity between all metallic components, such as cable shields, support structures, and cable trays.
This reduces the risk of stray currents or voltage buildup on disconnected parts.
Low-impedance paths must be used for all grounding connections. Short, thick conductors with minimal bends provide the best performance. Grounding rods should be installed at regular intervals to maintain earth potential and prevent resistance from rising over time.
Route Planning and Cable Layout
The physical routing of overhead cables has a significant impact on EMI exposure. Careful planning can reduce proximity to interference sources and minimize crosstalk between cables.
Cables should be routed with maximum possible distance from known sources of EMI, such as high-voltage transmission lines, industrial equipment, or radio towers. If crossing is necessary, cables should intersect power lines at a 90-degree angle to reduce coupling.
Parallel runs between power and communication cables should be avoided whenever possible.
If parallel routing is unavoidable, physical separation using vertical or horizontal spacing should be maintained. Additional shielding or the use of barriers such as grounded metal plates can be considered.
Twisting or staggering the cable layout can also help reduce mutual interference between cables.
In overhead installations where wind-induced movement may occur, mechanical supports should be used to maintain spacing and prevent contact between adjacent lines.
Filtering and Surge Protection
Filtering devices are used to suppress conducted EMI. They work by allowing desired signals to pass while blocking unwanted frequencies.
Common filter types include low-pass, high-pass, and band-reject filters. These can be installed at connection points between cables and equipment.
Surge protection devices such as arresters and suppressors are essential in overhead systems to protect against lightning-induced EMI. These devices shunt excess voltage to ground before it can enter sensitive equipment.
Ferrite beads and chokes are simple yet effective components that can be clamped onto cables to absorb high-frequency noise.
These are especially useful in communication lines or instrumentation cables where maintaining signal clarity is critical.
All protection devices should be rated appropriately for the system voltage and expected surge levels. Periodic inspection and replacement are recommended to maintain performance over time.
Inspection, Testing, and Compliance
Regular inspection and testing ensure that EMI management measures continue to function as expected. Cable shielding, grounding connections, and protective devices should be visually checked for damage or corrosion.
Testing tools such as spectrum analyzers, time-domain reflectometers (TDRs), and ground resistance meters can be used to detect EMI levels, assess shielding effectiveness, and verify continuity.
Compliance with international standards helps maintain uniformity and quality. Key standards include:
1. IEC 61000 series for electromagnetic compatibility.
2. IEEE 518 for grounding and shielding practices.
3. EN 55032 for EMI limits in information technology equipment.
Designing systems to comply with these standards helps minimize EMI risks while ensuring compatibility with other equipment.
Electromagnetic interference (EMI) is a real and persistent threat to the reliability of overhead cable systems. Unlike underground cables, overhead lines operate without natural shielding and are exposed to a wide range of environmental and man-made EMI sources.
Without proper management, this interference can disrupt signal integrity, damage sensitive equipment, and reduce system performance. However, EMI is not uncontrollable.
With a systematic approach starting from selecting the right cable type, applying effective shielding, ensuring proper grounding and bonding, to planning optimal routing and using surge protection interference can be significantly reduced or eliminated.
What makes EMI management effective is attention to detail at every level: design, installation, and ongoing maintenance. These are not optional best practices they are critical requirements for power, telecom, rail, and industrial systems relying on overhead cables.
By understanding the sources of EMI and applying the correct mitigation strategies, engineers and system operators can maintain efficiency, safety, and uninterrupted service.
Ultimately, EMI management is not about perfection it’s about prevention, preparation, and precision.
