Aluminum Conductor short circuits are sudden, high-current faults that can cause serious damage to electrical systems if not properly managed.
One of the most critical components affected during these events is the conductor and in many systems, aluminum is the material of choice.
It’s widely used because it’s lightweight, cost-effective, and relatively easy to work with.
However, aluminum behaves differently than copper when subjected to short circuit conditions, particularly in terms of heat buildup, mechanical stress, and thermal expansion.
Understanding how aluminum responds during a short circuit is not just useful it’s essential.
Whether you’re designing electrical infrastructure, specifying conductor sizes, or performing maintenance, knowing the performance limitations and response characteristics of aluminum conductors can help prevent failure, reduce downtime, and increase safety.
This isn’t about theory. It’s about practical, data-backed insights that apply to real-world applications from utility systems to industrial power grids.
Engineers, electricians, and safety inspectors all need a clear understanding of aluminum’s role in fault scenarios to ensure system reliability and compliance with industry standards.

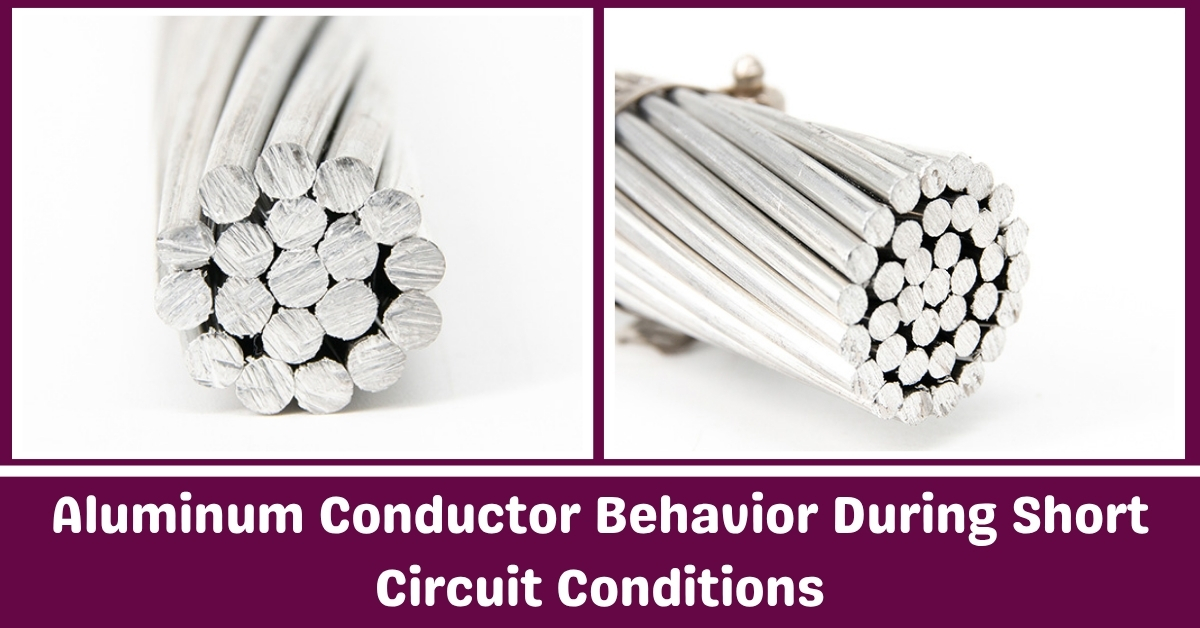

Aluminum Conductor Behavior During Short Circuit Conditions
In this guide, we will explain the detailed behavior of Aluminum Conductors during short circuit conditions, supported by calculations, comparisons, and practical recommendations.
1. What Happens During a Short Circuit?
A short circuit is an abnormal connection between two nodes of an electrical circuit, resulting in an unintended path with very low impedance.
When this occurs, the current in the circuit rapidly increases, often reaching thousands or even tens of thousands of amperes within a fraction of a second.
This sudden and extreme rise in current leads to two primary types of stress: thermal and mechanical.
The thermal stress arises due to the enormous power dissipation in the form of heat, as described by the formula I²R, where “I” is the current and “R” is the resistance of the conductor.
Even though the resistance of aluminum is relatively low, the square of a large fault current can result in an extremely high heat output in just milliseconds.
For example, a short circuit current of 20,000 amperes flowing through a conductor for just 0.1 seconds can raise the temperature of the material by several hundred degrees Celsius.
Mechanical stress during a short circuit is equally important. The interaction between the magnetic fields generated by the high fault currents results in intense electromechanical forces.
These forces can physically move, bend, or even dislodge conductors, especially if they’re inadequately supported. The greater the fault current and the closer the conductors, the higher the mechanical forces.
Moreover, short circuits often result in arcs, especially at connection points or faults in insulation. These arcs can burn through conductors or lead to further electrical failures.
That’s why short circuits, though brief, can cause severe and lasting damage to electrical systems if not properly anticipated and controlled in the design phase.
2. Why Aluminum is Used in Electrical Systems
Aluminum is a popular conductor material in electrical systems, particularly in overhead transmission and distribution lines, large-scale power infrastructure, and certain building wiring applications. Its widespread use is driven by several practical and economic factors.
The foremost reason is cost. Aluminum is significantly less expensive than copper — often up to three or four times cheaper per unit weight.
For large-scale projects or utility networks where hundreds of kilometers of conductor are used, the cost savings are substantial.
Another advantage is its low density. Aluminum weighs only about 30% of the equivalent volume of copper.
This makes it much easier to handle, transport, and install, especially in overhead applications where conductor weight plays a role in tension, sag, and support structure design.
Though aluminum has only about 61% of the electrical conductivity of copper, this limitation is often managed by increasing the cross-sectional area of the conductor.
When adjusted for conductivity-to-weight ratio, aluminum performs well in many applications and allows for a cost-effective, lightweight alternative.
In addition, aluminum naturally forms a protective oxide layer on its surface, which resists corrosion. This property is particularly beneficial in outdoor and marine environments where moisture and pollution might degrade other materials over time.
Despite some limitations in conductivity and thermal properties, aluminum is widely favored for its practical benefits and acceptable performance in most standard conditions — provided it’s properly sized and installed.
3. Key Physical Properties of Aluminum
To understand aluminum’s behavior during short circuit conditions, it’s important to consider its fundamental physical properties, as these directly affect how it responds under extreme electrical stress.
Electrical Conductivity
Aluminum has an electrical conductivity of about 35.5 MS/m, or approximately 61% of copper’s conductivity. This means more aluminum (in terms of cross-section) is required to carry the same current as copper.
Thermal Conductivity
Aluminum has a thermal conductivity of around 237 W/m·K, which is decent for dissipating heat but lower than copper. During faults, its ability to spread heat is adequate but must be compensated for by careful design.
Melting Point
Aluminum has a relatively low melting point of about 660°C. This becomes a key vulnerability during short circuits, where temperature rise can reach or exceed this value if the conductor is undersized or the protection system fails.
Density
At 2.7 g/cm³, aluminum is about one-third the weight of copper, which contributes to its lightweight advantage in long-span applications like overhead lines.
Thermal Expansion
Aluminum expands more with temperature compared to copper, with a coefficient of thermal expansion of approximately 23.1 × 10⁻⁶ /°C. This means connections and joints are subject to more movement under thermal cycling.
Specific Heat Capacity
At around 0.897 J/g·K, aluminum requires a relatively high amount of energy to increase its temperature by one degree, which can be both beneficial and limiting depending on the context.
Tensile Strength
Aluminum conductors typically have lower tensile strength than copper — around 90 to 130 MPa in soft form. This affects their ability to withstand mechanical shock and electromagnetic forces during faults.
These properties collectively determine aluminum’s thermal, mechanical, and electrical response during fault conditions. While it can perform reliably within limits, it is more sensitive to prolonged heating and mechanical shock than copper.
4. Aluminum Conductor Behavior During a Short Circuit
When a short circuit occurs, aluminum conductors face intense thermal and mechanical challenges in a matter of milliseconds. One of the immediate effects is the rapid rise in temperature due to the high magnitude of fault current.
This temperature increase is governed by the energy input calculated using the formula I² × R × t, where “t” is the fault duration in seconds.
For a typical short circuit current of 25,000 A over 0.2 seconds, even a relatively thick aluminum conductor can experience a temperature rise of several hundred degrees Celsius.
If the final temperature exceeds the conductor’s rated thermal limit (often 200–250°C for insulated cables), it can lead to degradation of the insulation or, in severe cases, melting of the aluminum itself.
Besides thermal effects, the conductor is also subjected to strong mechanical forces generated by the interaction of electromagnetic fields.
These forces can cause displacement or mechanical failure if the conductor is not properly braced or if joints and connections are poorly secured.
This is especially critical in switchgear assemblies and busbars where conductors are in close proximity and subject to high currents.
Aluminum’s high thermal expansion further complicates the situation. Rapid heating and cooling can cause expansion and contraction cycles that loosen joints or stress insulation materials.
Over time, these movements contribute to connection failures or arc faults.
During a short circuit, aluminum can perform reliably if the conductor is properly sized, the fault is cleared quickly, and mechanical supports are adequate. But without careful planning, it’s vulnerable to thermal damage and mechanical failure.
5. Comparing Aluminum with Copper During Faults
To determine the suitability of aluminum in short circuit conditions, it’s helpful to directly compare its behavior to copper, the industry’s benchmark conductor material.
Thermal Performance
Copper has a higher melting point (~1085°C) and better thermal conductivity (~401 W/m·K), meaning it handles heat more effectively and is less likely to melt or degrade under short circuit conditions.
Aluminum, with a lower melting point (~660°C), must be sized larger or have faster fault clearing mechanisms in place to avoid overheating.
Mechanical Strength
Copper is mechanically stronger and less prone to deformation under stress. During fault conditions, when electromechanical forces act on conductors, copper maintains its shape and structural integrity better than aluminum, reducing the risk of displacement.
Expansion and Joint Reliability
Aluminum’s higher thermal expansion rate means that it’s more prone to joint loosening over time. This can increase contact resistance, leading to localized overheating and potential arcing.
Copper expands less, so connections are generally more stable over a longer period.
Weight and Cost
Aluminum has a clear advantage in weight and cost. For the same current-carrying capacity, aluminum requires a larger cross-section, but even then, the total weight and material cost remain significantly lower than copper.
This makes it attractive for large-scale applications where cost efficiency and lightweight are priorities.
Conductivity
Copper’s superior conductivity (100% IACS) means that it can carry more current through a smaller cross-section. Aluminum compensates for its lower conductivity (61% IACS) by increasing its size, which may require more space in panels or enclosures.
6. Design Considerations for Aluminum in Short Circuit Zones
Designing systems with aluminum conductors in zones where short circuits are likely requires attention to several factors that ensure the system can withstand the extreme conditions imposed by fault currents.
Conductor Sizing
Aluminum conductors must be sized based on their short circuit withstand capacity, not just their normal current-carrying capability.
This involves calculating the maximum permissible temperature rise during a fault and ensuring the conductor’s cross-sectional area is sufficient to absorb the generated heat without exceeding material limits.
Fault Duration Management
Reducing the duration of a fault significantly limits the heat generated. Fast-acting protective devices such as circuit breakers and relays must be selected and coordinated to interrupt the current as quickly as possible — ideally in less than 0.2 seconds.
Mechanical Support and Bracing
During short circuits, the forces acting on conductors can be extreme. Aluminum’s lower tensile strength requires strong mechanical supports, especially for busbars or closely spaced parallel runs.
Spacers, clamps, and brackets must be designed to handle peak electromagnetic loads.
Connection Integrity
Aluminum requires special consideration at joints and terminals. It oxidizes quickly, and the oxide layer is non-conductive.
Therefore, joints must be properly cleaned, and antioxidant compounds should be applied. Compression-type connectors are recommended for stable and long-lasting connections.
Thermal Expansion Allowance
Systems must accommodate aluminum’s thermal expansion by using flexible connectors or expansion joints. This reduces the mechanical stress on terminals and prevents damage during temperature fluctuations.
Compliance with Standards
Use standards such as IEC 60949 and IEEE 1584 to guide the design and validation of aluminum conductor systems under short circuit conditions.
These standards provide formulas and fault current tables for various conductor materials and insulation types.
Insulation and Sheath Selection
Because aluminum can reach high surface temperatures during faults, insulation materials should be rated to handle expected temperatures without degradation.
XLPE or EPR insulations are commonly used due to their high thermal stability.
Monitoring and Maintenance
Regular inspections of aluminum connections, particularly at load centers and distribution panels, can catch signs of loosening or heating. Thermographic scanning and torque checks should be part of routine maintenance.
Incorporating these design and operational practices ensures that aluminum conductors can perform safely and reliably, even in systems where short circuits are a critical consideration.
Conclusion
Aluminum conductors remain a widely used and economically practical choice in electrical systems, especially where weight and cost are major considerations. However, during short circuit conditions, their behavior presents unique challenges that cannot be overlooked.
The relatively low melting point, higher thermal expansion, and lower tensile strength of aluminum require careful attention in design, installation, and maintenance to ensure safety and system reliability.
While copper outperforms aluminum in nearly all technical categories such as conductivity, thermal tolerance, and mechanical durability aluminum can still deliver reliable performance when properly sized and protected.
This includes ensuring fast-acting circuit protection, secure mechanical bracing, and high-integrity connections using appropriate joining techniques and materials.
Ultimately, understanding aluminum’s thermal and mechanical behavior during short circuit events isn’t just a matter of academic interest it’s a practical necessity for engineers, installers, and maintenance teams working in real-world environments.
With the right approach and adherence to standards, aluminum conductors can function safely and efficiently even under extreme fault conditions.
By applying sound engineering practices, aluminum remains a viable and reliable option — even when short circuit events strike.
