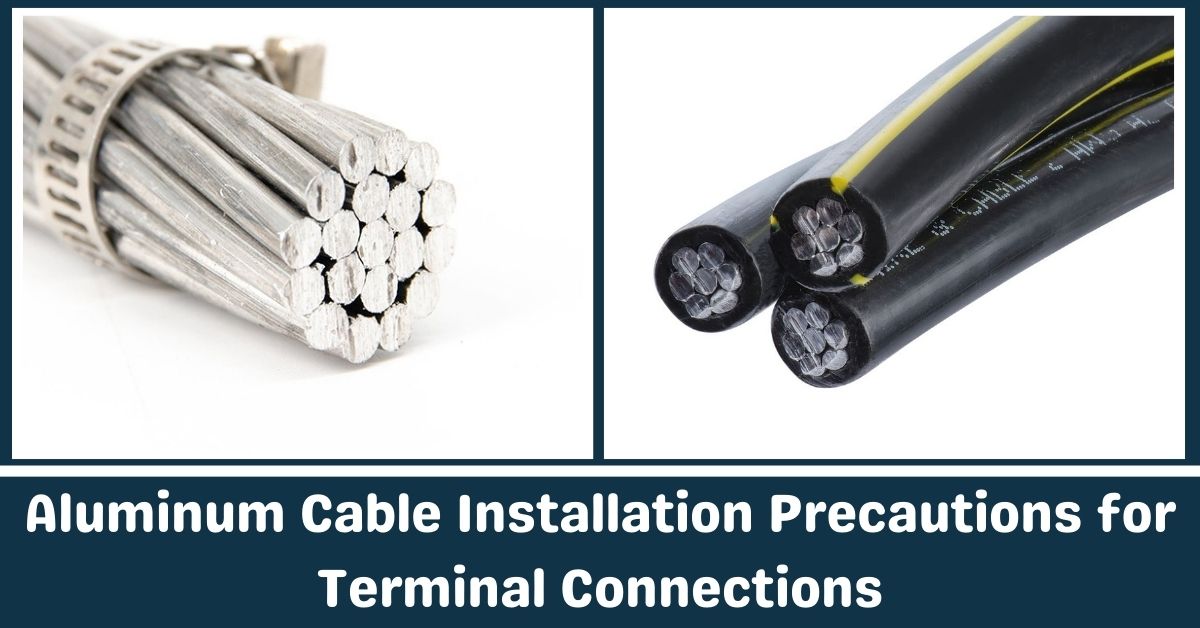

Aluminum cables are increasingly used in electrical installations due to their lighter weight and lower cost compared to copper. However, they require a different approach, especially at terminal connections where most issues occur.
Unlike copper, aluminum has unique properties such as higher thermal expansion, lower conductivity, and a tendency to form an insulating oxide layer on its surface.
These characteristics make aluminum more prone to connection failures if not handled correctly.
Loose terminations, oxidation, and improper torqueing can lead to overheating, arcing, and even fire hazards.
For electricians, contractors, and maintenance professionals, understanding the right installation techniques for aluminum cable terminal connections is not just about code compliance it’s essential for long-term system safety and reliability.
Many common problems can be prevented with the right knowledge and tools.
From selecting compatible terminals to applying anti-oxidant compounds and using correct torque values, each step plays a critical role. Neglecting even one precaution could compromise the entire circuit.
In this guide, we will explain everything you need to know about Aluminum Cable installation precautions at terminal connections , using factual data, clear procedures, and practical tips.
Aluminum cable behaves differently from copper, particularly at terminal points. These differences make aluminum more sensitive to improper installation and increase the risk of faults if not managed correctly.
One major issue is aluminum’s tendency to oxidize. When exposed to air, aluminum forms a thin layer of aluminum oxide that is non-conductive.
This layer increases contact resistance at terminals, which can cause excessive heat buildup during current flow. Unlike copper oxide, which still conducts electricity to some extent, aluminum oxide acts as an insulator.
This makes it essential to clean and treat aluminum conductor surfaces before connection.
Another challenge is aluminum’s higher coefficient of thermal expansion. It expands and contracts more than copper with temperature changes.
Over time, this movement can loosen terminal connections, resulting in poor conductivity, arcing, or even fire hazards. Also, aluminum has lower mechanical strength, making it more prone to damage during bending or compression.
Combined with its higher creep rate where the material slowly deforms under pressure this makes aluminum connections less stable unless installed with precision.
Understanding these physical characteristics is the first step to ensuring safe and long-lasting aluminum cable terminations.
Before connecting aluminum cables to any terminal, several checks must be completed to ensure the components, materials, and tools are suitable for the job.
Begin by confirming that the cable itself is made from the proper grade of aluminum for electrical wiring. AA-8000 series aluminum alloy is the industry standard for modern building wire.
It offers better strength, lower creep, and higher stability than older AA-1350 conductors, which are only suitable for certain applications like utility overhead lines.
Next, check the compatibility of terminals and connectors. Not all lugs or terminals are designed for aluminum.
Only use terminals that are labeled “AL” or “AL/CU”, indicating they are listed for use with aluminum or both aluminum and copper conductors. Using copper-only terminals can cause galvanic corrosion and lead to failure over time.
Inspect your tools before starting the job. You should have a properly calibrated torque wrench to ensure that each connection is tightened to the manufacturer’s specifications.
Also, have a tube of oxide-inhibiting compound ready. This paste helps prevent re-oxidation after cleaning the aluminum and improves conductivity. Use only compounds specifically designed for electrical applications.
Finally, ensure you are familiar with the cable’s insulation type and temperature rating. Most modern aluminum building wire is rated at 90°C in dry conditions, but this can vary.
Check labeling and match with terminal and panel ratings to avoid overheating issues.
Proper terminal connections for aluminum cables require a specific, repeatable process to ensure safety and reliability.
Start by preparing the conductor. Strip the insulation carefully using a tool designed for aluminum to avoid nicking or damaging the strands.
Do not use makeshift tools or over-strip, as that may expose too much conductor or weaken the structure. Once stripped, immediately clean the exposed aluminum using a wire brush or abrasive pad.
This removes the oxide layer and exposes the raw conductive metal underneath.
Immediately after cleaning, apply a generous amount of oxide-inhibiting compound to the cleaned surface. Do not wait, as oxidation starts to form again within minutes of exposure to air.
The compound should fully coat the conductor surface that will contact the terminal.
Insert the conductor into the terminal lug completely, making sure no strands are left outside the terminal. Poor insertion can lead to arcing and uneven current distribution.
Ensure the cable enters the lug straight, without sharp bends near the terminal. As a general rule, maintain a bend radius of at least 8 times the cable diameter.
Now, tighten the terminal using a torque wrench set to the manufacturer’s recommended torque values.
Under-torqueing can lead to loose connections, while over-torqueing can crush the conductor and damage the strands. Never rely on hand-tightening or guesswork always follow the specified torque.
After tightening, wipe off any excess compound and visually inspect the connection. Make sure the cable is secure and there’s no sign of fraying, bending, or misalignment.
Aluminum can be used for grounding and bonding, but only when installed with compatible equipment and methods. Grounding connections are critical points in any electrical system, and mistakes here can create safety hazards or lead to code violations.
Use only grounding lugs or terminals that are rated for aluminum conductors. These will typically be labeled “AL” or “AL/CU”.
Copper-only terminals are not suitable because they can cause electrochemical corrosion when in contact with aluminum, especially in humid or damp environments.
For bonding aluminum to copper components such as copper busbars or grounding grids use approved bi-metallic connectors.
These connectors are designed to prevent galvanic corrosion by separating the two metals inside the slug. Direct connections between aluminum and copper should never be made without such connectors.
Additionally, ensure that all bonding points are tight, clean, and treated with oxide-inhibiting compound if aluminum is involved.
Regular inspection of grounding connections is essential, especially in outdoor or industrial applications where corrosion risk is higher.
Aluminum conductors must be derated based on ambient temperature, insulation type, and the number of conductors in a conduit. Unlike copper, aluminum has a lower current-carrying capacity, so proper derating is essential to avoid overheating.
Use NEC Table 310.15(B)(16) to determine base ampacity and apply necessary derating factors based on the installation environment.
For example, a 1/0 aluminum conductor is rated at 120 amps at 75°C, while the same size in copper is rated at 150 amps. Always match the conductor ampacity with the load requirements and temperature ratings of the terminal equipment.
In corrosive or high-humidity environments, additional steps should be taken to protect aluminum terminations. Corrosion-resistant lugs or sealed terminal blocks should be used.
Anti-oxidant compound becomes even more important in these settings to prevent environmental damage. In outdoor installations, ensure that enclosures are weather-rated and that all cable entries are properly sealed.
Aluminum is also more affected by cold temperatures. In extremely low temperatures, it can become brittle. Use caution during installation in freezing conditions to avoid cracking or breaking the conductor during bending or securing.
Regular inspection and maintenance are vital for aluminum cable terminations. Even when installed correctly, aluminum can loosen over time due to thermal cycling and creep.
Visual inspections should be conducted periodically to check for signs of wear, heat damage, corrosion, or loosening. Look for discoloration of insulation near the terminals, exposed strands, or buildup of corrosion.
If any abnormalities are found, the connection should be re-terminated following the full procedure.
Torque checks are also recommended as part of scheduled maintenance. Over time, creep can cause the terminal to lose its grip on the conductor.
Using a torque wrench, verify that terminal screws remain within the specified torque range. Some manufacturers suggest re-torqueing aluminum connections after 6 months and then annually thereafter, especially in high-load systems.
Thermal imaging is another valuable tool for Aluminum Cable Maintenance. Use an infrared camera to scan panels and junctions while under normal load.
Hot spots that are significantly warmer than surrounding connections indicate a problem that should be addressed immediately.
Keeping a maintenance log can help identify trends and plan preventative action before failures occur.
Several common errors occur during aluminum cable installation at terminals. Avoiding these mistakes greatly reduces the chance of failure.
First, never skip the anti-oxidant compound. It’s not optional. This compound prevents oxidation at the point of contact and enhances the longevity of the connection. Skipping it will almost certainly result in increased resistance and overheating.
Second, don’t use copper-only terminals. These are not compatible with aluminum and will cause electrochemical corrosion, especially in damp environments. Only use lugs and terminals marked “AL” or “AL/CU.”
Another frequent mistake is using incorrect torque or relying on hand-tightening. Without precise torque, the connection may be either too loose (causing arcing) or too tight (damaging the conductor). Always use a properly calibrated torque wrench.
Improper conductor preparation is another major issue. Leaving the oxide layer on, inserting a dirty conductor, or over-stripping can all lead to poor contact. Always clean the conductor and apply compound immediately before insertion.
Finally, avoid making bends too close to the terminal. Sharp bends can stress the conductor and increase the likelihood of strand breakage or loosening. Maintain a proper bend radius—typically at least 8 times the diameter of the cable.
By understanding and avoiding these common errors, installers can significantly increase the safety and durability of aluminum cable terminations.
Aluminum cables offer several advantages, such as reduced weight and lower cost, but they require specific handling especially at terminal connections to ensure long-term reliability and safety.
Due to characteristics like higher thermal expansion, lower conductivity, and a tendency to oxidize, aluminum demands extra attention during installation. Each step from pre-installation checks to the final torque setting—plays a critical role in the integrity of the connection.
Using the right terminals, applying oxide-inhibiting compound, and ensuring proper torque values aren’t optional they’re essential best practices.
Environmental factors, grounding methods, and routine maintenance further contribute to system performance. Skipping even one precaution can result in failures like overheating, arcing, or fire hazards.
By following a systematic approach and avoiding common mistakes, installers can ensure that aluminum terminal connections meet industry standards and perform reliably over time.
This guide provided practical, no-nonsense instructions to help professionals work safely and efficiently with aluminum wiring.
Whether you’re installing a new system or maintaining an existing one, following these steps is the key to avoiding future problems and ensuring electrical safety and performance.
